Mosdorfer Rail Products

Tensorex C+

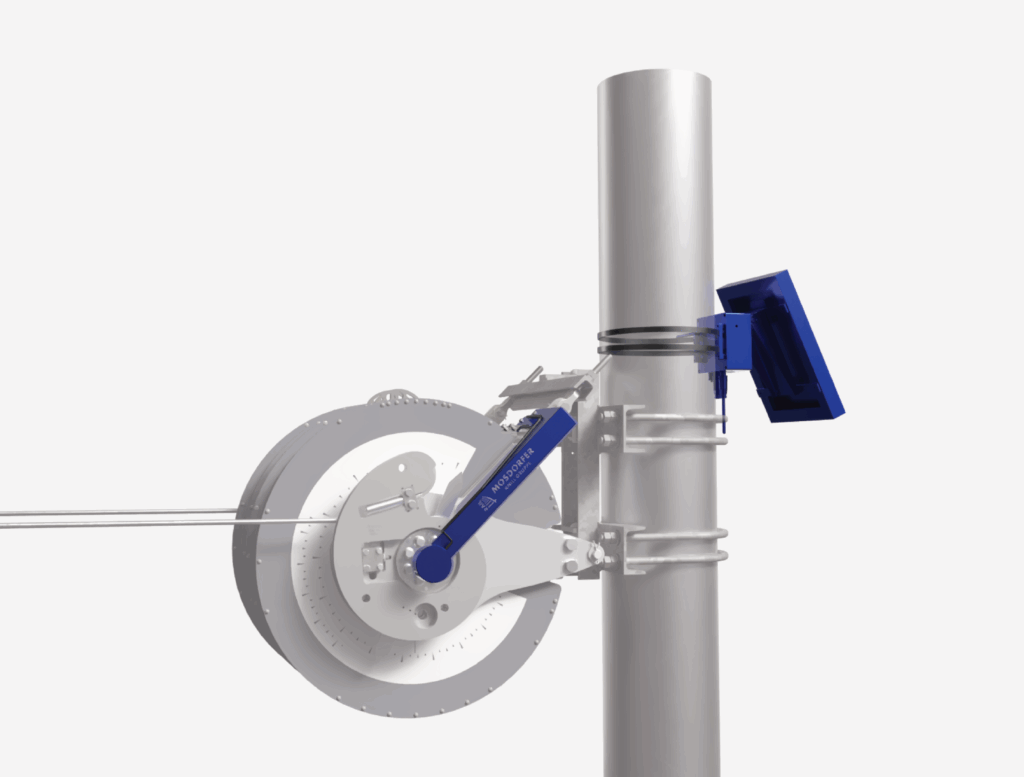

Our Tensorex C+ is an advanced automatic tensioning system designed for railway electrification systems, specifically for overhead catenary systems (OCS). This innovative product ensures constant tension in the contact wires, accommodating changes in temperature and mechanical loads, thereby improving the reliability and efficiency of the railway power supply.

Downloads

Mosdorfer Rail´s Tensorex C+ can be applied to railways and tramways. As well as being applied in tunnels, noise protection walls and platforms. Is best for Inner-city installations where low visual impact
is requested.

Tensorex C+ works by exerting a constant pulling force on the connected catenary wires. The tensile force is independent of the temperature – related length changes of the ropes. The one or more spiral springs are firmly connected to two pulleys (one on each side) on the same shaft.

Highest Safety

Requires no counterweights so the likelihood of a falling weight is reduced to zero.
Compact design

Easy handling and transportation – aesthetic solutions for inner city installations.
High Precision

Constant tightening force over entire compensation range.
Highest reliability

Every Tensorex C+ Unit is tested before shipping to the customer and supplied with a test certificate.
Fast installation

Delivered and ready to install, no assembly required, no weights to be installed.
Purely mechanical device

Requires no additional power supply and electronics.
Lowest life cycle cost

Minimal installation time and cost – only visual inspection needed.
Vandalism Resistant

As no weights required. Free space on the mast base as well as escape routes not being blocked.

Mosdorfer Rail Products

Tensorex C+ 3D

Our Tensorex C+ is an advanced automatic tensioning system designed for railway electrification systems, specifically for overhead catenary systems (OCS). The Tensorex C+ 3D is a tensioning device designed to allow for an increased compensation length in comparison to the standard Tensorex C+ range.

Downloads

Mosdorfer Rail´s Tensorex C+ 3D consists of 4 product groups which can add up to an additional 40% in compensation length compared to the standard Tensorex C+ device.

Tensorex C+ 3D works by exerting a constant pulling force on the connected catenary wires. The tensile force is independent of the temperature – related length changes of the ropes. The one or more spiral springs are firmly connected to two pulleys (one on each side) on the same shaft.

Compact and Lighter

More compact and lighter than an alternative tensioning system.
High Precision

Constant tightening force over entire compensation range
High Level of Safety

Requires no counterweights so the likely hood of a falling weight is reduced to zero.
Fast Installation

Delivered and ready to install, no assembly required, no weights to be installed.
Lowest life cycle cost

Minimal installation time and cost – only visual inspection needed.
Purely Mechanical Device

Requires no additional power supply and electronics
Increased Compensation Length

Up to 40% additional compensation length (dependent on line tension.)
Vandalism Resistant

No weights required. Free space on the mast base as well as escape routes not being blocked.
